RIA16
Loop-powered indicator

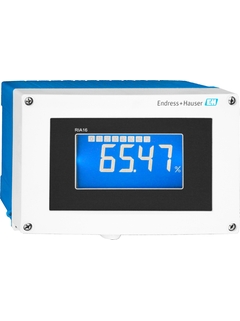

Loop-powered process indicator RIA16 for field mounting ©Endress+Hauser

Excellently readable indication of 4…20 mA signal with trend bar graph for a better process overview

The indicator shows the measured signal on the large, backlit display. A bar graph indicates the value graphically for a quick process overview. An editable plain text field displays further information like engineering unit or TAG. Limit value infringement is also signalized and an open collector can be switched. The indicator is powered directly from the 4...20 mA loop and doesn't need a separate power supply. For applications in hazardous areas the device is available with Ex approvals.

  • Enkla produkter

  • Enkla att välja, installera och använda

Tekniska egenskaper

Enkelhet

  • Standardprodukter

  • Pålitliga, robusta och lätta att underhålla

Tekniska egenskaper

Enkelhet

  • High-end produkter

  • Mycket funktionella och praktiska

Tekniska egenskaper

Enkelhet

  • Specialprodukter

  • Designade för krävande applikationer

Tekniska egenskaper

Enkelhet

Varierande

FLEX urvalet Tekniska egenskaper Enkelhet
  • F
  • L
  • E
  • X

Fundamental urvalet

Möt dina grundläggande mätbehov

Tekniska egenskaper
Enkelhet
  • F
  • L
  • E
  • X

Lean urvalet

Hantera dina kärnprocesser med enkelhet

Tekniska egenskaper
Enkelhet
  • F
  • L
  • E
  • X

Extended urvalet

Optimera dina processer med innovativa teknologier

Tekniska egenskaper
Enkelhet
  • F
  • L
  • E
  • X

Xpert urvalet

Hantera dina mest utmanande applikationer

Tekniska egenskaper
Enkelhet

Varierande

  • En överblick över specifikationer

    • Input

      1 x analogue 4...20 mA

    • Output

      1 x open collector

    • Output

      1 x open collector

    • Display

      LCD 26 mm (1.02")
      5-digit
      Bargraph
      Plain text display

    • Power Supply

      Loop powered

please wait Loading alternative products

Snabbval

Välj från de föreslagna alternativen
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

eller

Individuell konfigurering

Fortsätt välja från alla tillgängliga alternativ
  • Fördelar

    • Display of 4 to 20 mA measured values

    • 5-digit measured value display with dimension, bar graph and backlight

    • No external power supply required

    • Versions: Fiber glass reinforced plastic respectively aluminum for Ex-applications

    • Easy 3-key operation; or...

  • Applikationsområde

    Microcontroller controlled process indicator with field housing and illuminated LC display. The measuring range, decimal point and offset of the display can be configured comfortably by means of three keys in the device with the housing open or by...

Details

  • Mätprincip

    Loop powered indicators

  • Measuring principle

    Loop-powered field indicator

  • Function

    Display

  • Display

    LCD 26 mm (1.02")

    5-digit

    Bargraph

    Plain text display

  • Power Supply

    Loop powered

  • Input

    1 x analogue 4...20 mA

  • Output

    1 x open collector

  • Output

    1 x open collector

  • Software functions

    Not defined

  • Certificates

    UR C/US

    CSA GP

    ATEX Ex i

    FM USA NI

    FM USA DIP

    CSA NI

    CSA DIP

    EAC

    Marine approval

  • SIL

    Not defined

  • Panel mounting

    field

  • Mätprincip

    Display

  • Function

    Display

  • Certification

    UR C/US

    CSA GP

    ATEX Ex i

    FM USA NI

    FM USA DIP

    CSA NI

    CSA DIP

    Marine approval

  • Input

    1 x analogue 4...20 mA

  • Output

    1 x open collector

  • Auxiliary power supply / Loop power supply

    Loop powered

  • Dimensions (wxhxd)

    Field housing:

    199 x 133 x 96 mm

    (7.83" x 5.24" x 3.78")

  • Operation

    3 keys interface on electronics + PC interface FieldCare

  • Display

    LCD 26 mm (1.02")

    5-digit

    Bargraph

    Plain text display

Dokumentation / manualer / programvara

Tillbehör / reservdelar

Nr
Order code
Specification
  • 2
  • 1
    • Nr 1 Order code RIA16X-GB

      Front Alu incl. front foil + glass (with seals + display fixing frame)

  • 4
  • 3
  • 8
    • Nr 8 Order code RIA16X-GF

      Kit cover + connection parts: Cover for front + lower part, counter plate for cable gland (plastic housing), ribbon cable main board-display board

  • 7
    • Nr 7 Order code RIA16X-GG

      Kit small parts: Goretex filter, 2x hinge bolts, cable shield ground clamp (metal set = 5 x bracket + bolt / washers)

  • 5
    • Nr 5 Order code RIA16X-EA

      Electronic complete (Ex + nonEx) incl. connection board + cover

  • 9
  • 6
  • 6
    • Order code RK01-AH

      Mounting set wall/pipe, plastic housing RIA46, RIA16, RID16

    • Order code RK01-AR

      RIA16/RID16/RIA46 weather protection cover

    • Order code RK01-AU

      Mounting set wall/pipe, Alu housing RIA46,RIA16,RID16

    • Order code DIENST-
    • Order code XPRFID-

      Spare RFID TAG

      Consists of: RFID TAG, fixing wire, crimp sleeve.

    • Order code TXU10-

      Configuration kit TXU10-

      for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.
