©Endress+Hauser

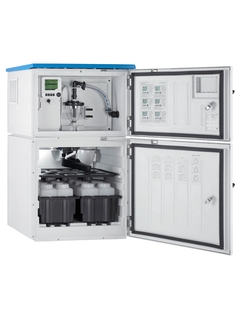

Liquistation CSF48 automatically takes water samples for monitoring of wastewater treatment plants, sewage networks, surface water and industrial processes.
©Endress+Hauser

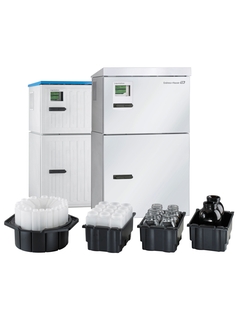

The stationary automatic water sampler is available with plastic and stainless steel housings and various sample bottle configurations.
©Endress+Hauser
Heartbeat Technology allows status-oriented maintenance of the automatic water sampler.
©Endress+Hauser

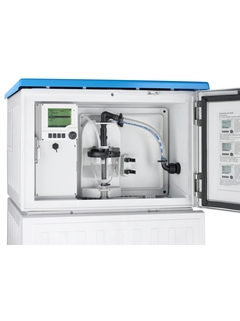

Liquistation CSF48 with vacuum pump. It is used for most standard sampling applications as it offers accurate, reproducible sample volumes and a high sample transport velocity.
©Endress+Hauser

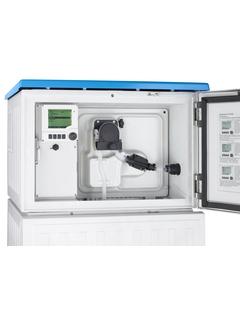

Liquistation CSF48 with peristaltic pump. This version is recommended when cyclic rinsing of the suction line or variable sample volumes are desired.
©Endress+Hauser

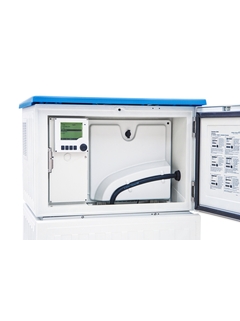

Liquistation CSF48 without pump. It is used together with the CSA420 assembly for automatic sampling from pressurized pipes or tanks. With this system no waste drainage is necessary.
En överblick över specifikationer
Suction height
6 m (19.69 ft) suction height
Cabinet
Plastic PS
Process temperature
Sample temperature: 2 to 50 °C
Process pressure
Max. 0.8 bar
Applikationsområde
Sampling made safe and easy. The Liquistation CSF48 automatic water sampler complies with worldwide water regulation, features a fail-safe cooling system and vandalism-proof housing guaranteeing outstanding safety for your samples. Easy, menu-guided sample programming and tool-free maintenance save you time in your everyday tasks. Liquistation can be upgraded to a complete measuring station for modern environmental monitoring at any time giving you the flexibility to address future demands.
Liquistation CSF48 is suitable for the following applications:
Municipal and industrial wastewater treatment plants:
Authorities and water management authorities:
Fördelar
Automatic water sampling in full compliance with all relevant national and international standards such as ISO 5667
100% adaptable to any monitoring task from time- or flow-controlled sampling to event-controlled sampling and multiple sampling routines
By connecting up to four Memosens sensors, the sampler can be upgraded to a fully-fledged measuring station (e.g. for event monitoring)
Offers all the benefits of the Liquiline platform, such as uniform operation of all devices, easy expandability and reduced need for spare part stock thanks to standardized components
Fully integrable in any process control system thanks to digital fieldbus communication and remote access via web server
Quick cleaning and maintenance thanks to easy, tool-free removal of wetted parts. With our Heartbeat Technology you always know the status of your device and therefore cost and resources savings are possible.
Latest and environmentally friendly cooling technology without hydrofluorocarbons (HFC) for optimal processing of your samples
Extended urvalet
High-end produkter
Mycket funktionella och praktiska
Tekniska egenskaper
Enkelhet
©Endress+Hauser
Enkla produkter
Enkla att välja, installera och använda
Tekniska egenskaper
Enkelhet
Standardprodukter
Pålitliga, robusta och lätta att underhålla
Tekniska egenskaper
Enkelhet
High-end produkter
Mycket funktionella och praktiska
Tekniska egenskaper
Enkelhet
Specialprodukter
Designade för krävande applikationer
Tekniska egenskaper
Enkelhet
FLEX urvalet
Tekniska egenskaper
Enkelhet
Fundamental urvalet
Möt dina grundläggande mätbehov
Tekniska egenskaper
Enkelhet
Lean urvalet
Hantera dina kärnprocesser med enkelhet
Tekniska egenskaper
Enkelhet
Extended urvalet
Optimera dina processer med innovativa teknologier
Tekniska egenskaper
Enkelhet
Xpert urvalet
Hantera dina mest utmanande applikationer
Tekniska egenskaper
Enkelhet
Loading alternative products
Kundcase
Monitoring biological parameters in wastewater
Examination of wastewater, using the Liquistation CSF48 and the Liquiport CSP48 mobile, can provide valuable information about the occurrence of Covid 19 infections in a specific area
Läs hela berättelsen
An automated system for pH measurements at AVR
AVR Waste in Botlek, Rotterdam, processes up to 1.7 million tons of residual waste per year. Discover how they optimized their pH measurement thanks to Endress+Hauser
Läs hela berättelsen
Det här kanske också intresserar dig
Application
Communal and industrial wastewater treatment plants
Dosing system
Vacuum pump system
Suction height
6 m (19.69 ft) suction height
Cabinet
Plastic PS
Process temperature
Sample temperature: 2 to 50 °C
Cooling
Active, dynamic cooling unit
Process pressure
Max. 0.8 bar
Heating
Evaporator and defrosting unit mounted in compact housing
Input
Analogue: 2, galvanically isolated
Output / communication
Binary: 2, galvanically isolated
Interface
CDI
Data logger
All events and data
Power supply
Depending on version:
Dimension
1.258 x 753 x 625 mm (h x w x d)
Accessories
Sampling from pressurized systems
Options
Connection to digital sensors with Memosens protocol, Fieldbuscommunication
