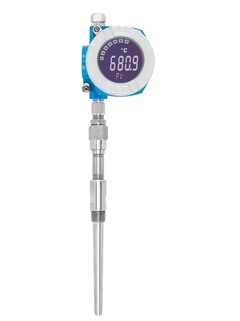

Omnigrad S TMT162C
TC Thermometer, field transmitter,display

Omnigrad S TMT162C
TC Thermometer, field transmitter,display ©Endress+Hauser
Omnigrad S TMT162C
TC Thermometer, field transmitter,display ©Endress+Hauser

Safe monitoring of process temperatures in challenging applications e. g. in the Oil & Gas industry

The robust thermometer is designed for use in demanding and safety relevant applications e.g. in the Chemical, Oil & Gas and Energy industry. The thermometer fulfills the corresponding safety requirements due to various certificates and tests. The use of a transmitter leads to higher accuracy and reliability in comparison to directly wired sensors.

  • Fördelar

    • Dual compartment housing

    • Backlit display with large measured value, bar graph and fault condition indication

    • Galvanic isolation 2 kV (sensor input to the output)

    • Wide range of threaded thermowell connections available as standard

    • Replaceable measuring...

  • Applikationsområde

    • Chemical/pharmaceutical industry

    • Petrochemical industry

    • Energy industry

    • Paper industry

    • General industrial applications

    The TMT162C thermocouple thermometer comprises a measuring insert with a type J or K thermocouple and an electronic field transmitter...

Funktioner och specifikationer

Tillbaka

Details

  • Mätprincip

    Thermocouple

  • Characteristic / Application

    US style

    modular temperature assembly

    for heavy duty applications

    suitable for hazardous areas

    with neck

    to use with thermowell

    backlit display

  • Terminal head

    TMT162 - aluminium - fieldhousing w. or w/o. display

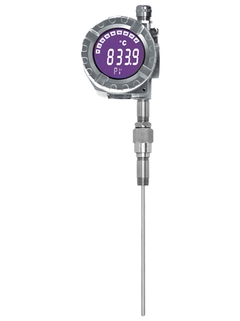

    TMT162 - SS - fieldhousing w. or w/o. display

  • Thermowell / protection tube

    to use with thermowell

  • Insert / probe

    mineral insulated (MI), flexible

  • Outer diameter protection tube / Insert

    6,0 mm (0,24'')

  • Max. immersion length on request

    up to 30.000,00 mm (1.181,10'')

  • Material protection tube/ thermowell

    Not defined

  • Optional coating

    Not defined

  • Process connection

    male thread:

    G1/2"

    NPT1/2"

    NPT3/4"

    M24x1.5

  • Tip shape

    straight

  • Operating temperature range

    Type K:

    -40 °C ...800 °C

    (-40 °F ...1.472 °F)

    Type J:

    -40 °C ...750 °C

    (-40 °F ...1.382 °F)

  • Max. process pressure (static)

    up to 20 °C: 480 bar (6.962 psi)

  • Accuracy

    class 1 acc. to IEC 60584

    class 2 acc. to IEC 60584

  • Response time

    depending on configuration

    t50 = 3 s

    t90 = 7 s

  • Integration head transmitter

    yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

  • Ex - approvals

    ATEX II

    ATEX Eex

    explosion proof

  • Certification

    Gost Metrology

Dokumentation / manualer / programvara

Tillbehör / reservdelar

Nr
Order code
Specification
  • 8
    • Nr 8 Order code 51004653

      M20x1.5 cable gland, 2xD0.5 cables

      for 2 sensors

    • Nr 8 Order code 51004654

      Cable gland NPT1/2, 2xD0.5 cables

      for 2 sensors

  • 8
  • 8
  • 6
  • 7
    • Nr 7 Order code 51004948

      Cover latch spares kit field housing

      Screw, washer, spring washer

  • 5
    • Nr 5 Order code TMT162X-HA

      Housing cover blind, 316L Exd ATEX Ex d, FM XP + O-ring CSA XP only as cover of terminal part

    • Nr 5 Order code TMT162X-HB

      Housing cover blind, 316L + O-ring

    • Nr 5 Order code TMT162X-HC

      Housing cover cpl. for display,Ex d,316L ATEX Ex d, FM XP, CSA XP + O-ring

    • Nr 5 Order code TMT162X-HD

      Housing cover cpl. for display, 316L + O-Ring

    • Nr 5 Order code TMT162X-HH

      Housing cover blind, Alu Ex d FM XP + O-ring CSA XP only as cover of terminal part

    • Nr 5 Order code TMT162X-HI

      Housing cover blind, Alu + O-ring

    • Nr 5 Order code TMT162X-HK

      Housing cover cpl. for display,Alu Ex d + O-ring

    • Nr 5 Order code TMT162X-HL

      Housing cover cpl. for display, Alu + O-ring

  • 2
    • Nr 2 Order code 71310423

      Display fitt.kit field housing (3 piece)

      Pack = 3 piece

    • Nr 2 Order code TMT162X-DA

      Display HART5 + fitting kit + twist protection

    • Nr 2 Order code TMT162X-DB

      Display PA/FF + fitting kit + twist protection

    • Nr 2 Order code TMT162X-DC

      Display fitting kit + twist protection

  • 8
    • Order code TEC300-

      Insert TEC300

      Replaceable Insert (MgO). Connection to EEx d head with 1/2NPT.

  • 4
  • 1
    • Order code FXA195-

      Commubox FXA195

      Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508.
