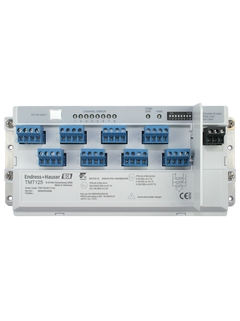

iTEMP TMT125
DIN rail temperature transmitter

©Endress+Hauser
©Endress+Hauser
©Endress+Hauser
©Endress+Hauser

Transformation of sensor signals into standardized digital output signals for all industries

Unsurpassed reliability, accuracy and long-term stability in critical processes over all industries. The configurable transmitter not only transfers digital converted signals from RTD and TC sensors, it also transfers resistance and voltage signals using FOUNDATION Fieldbus™ communication. High measurement point availability by means of sensor monitoring functions and device hardware fault recognition. Optionally, installation on DIN rail according to IEC 60715 or in a field housing.

  • Fördelar

    • Universal temperature transmitter for up to 8 input signals

    • Sensor monitoring: cable open circuit, short-circuit and wiring error

    • Device hardware fault recognition for reliable operation and easy maintenance

    • Galvanic isolation between fieldbus and sensor...

  • Applikationsområde

    • Temperature transmitter with 8 input channels and FOUNDATION Fieldbus™ protocol for converting various input signals into digital output signals

    • Input: Resistance thermometers (RTD), thermocouples (TC) resistance transmitters (Ω), voltage transmitters (...

Funktioner och specifikationer

Tillbaka

Details

  • Mätprincip

    Rail transmitter

  • Input

    8 x for RTD, TC, Ohm, mV

  • Output

    FOUNDATION Fieldbus H1

  • Auxiliary power supply

    9...32 V DC (FOUNDATION Fieldbus)

  • Communication

    FOUNDATION Fieldbus H1

  • Installation

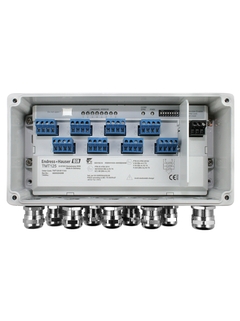

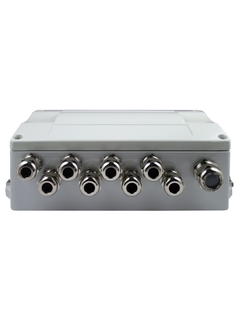

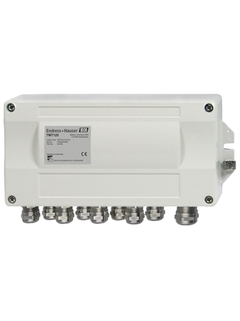

    DIN rail / field housing

  • Accuracy

    (Pt100, -50...200 °C) <= 0,33 K

    (Pt100, -58...392 °F) <= 0,6 °F

  • Galvanic isolation

    yes

  • Certification

    ATEX II2 (1G/D) G Ex ia IIC T4

    ATEX II (1) GD [Ex ia] IIC

    FM IS, NI /I/1+2/ABCD/T4

    FM AIS/I,II,III/1/ABCDEFG

    FMC IS, NI/I/1+2/ABCD/T4

    FMC AIS/I,II,III/1/ABCDEFG
    IECEx Ex ia IIC T4 [Ex ia] IIC

    IECEx Ex nA II T4

    NEPSI [Ex ia] IIC

    NEPSI Ex nA II T4

Dokumentation / manualer / programvara

Tillbehör / reservdelar

Nr
Order code
Specification
