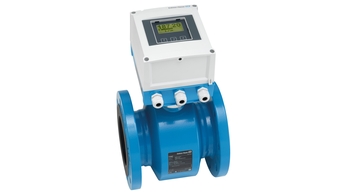

Promag L 800 / 5L8B

Produktbild av: Promag L 800 / 5L8B

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Dokumentation / manualer / programvara

Tillbehör / reservdelar

Nr
Order code
Specification
  • 83
    • Nr 83 Order code 71182805

      Kit antenna, 3m cable, Promag 800

      Consists of: Antenna with 3m cable, mounting bracket.

  • 45
    • Nr 45 Order code 71187755

      Kit connection terminals, Promag 800

      Consists of: Connection terminal 3-Pol. Connection terminal 4-Pol. Connection terminal 4-Pol. Connection terminal 6-Pol.

  • 44
    • Nr 44 Order code 50098018

      Kit connection board D/E/L/P/S/W FS

      Usage: 10/50/51/53/55/400/800

  • 51
    • Nr 51 Order code 71182798

      Kit cover with display, Promag 800

      Consists of: Cover plastic complete incl. display. O-Ring 195 x 3.53 EPDM. 2 x Hinge pin L= 58mm plastic.

  • 24
    • Nr 24 Order code 71188176

      Kit cover plastic, remote, Promag L/W

      Usage: Promag 400/800, Promag 500, sensor connection housing. Consists of: cover plastic coated, O-Ring 91,67 x 3,53 FKM.

    • Nr 24 Order code 50094038

      Kit Cover Connection terminal

      10/5X/40/8X/93/65/400/800

    • Nr 24 Order code 71247838

      Repair kit cover, remote version

      Usage: 10/5X/8X/8DF/8CN/92F/65/400/800 acc. service info SI01351D-1/06 Consists of: Cover Rep.kit for G14, O-Ring 110.00 x 4.50 HNBR, Grease

    • Nr 24 Order code 50094038

      Kit Cover Connection terminal

      10/5X/40/8X/93/65/400/800

    • Nr 24 Order code 71247838

      Repair kit cover, remote version

      Usage: 10/5X/8X/8DF/8CN/92F/65/400/800 acc. service info SI01351D-1/06 Consists of: Cover Rep.kit for G14, O-Ring 110.00 x 4.50 HNBR, Grease

  • 11
  • 25
    • Nr 25 Order code 71182806

      Kit 10 cover gasket, Promag 400(B)/800

      Usage: Promag 400(B)/800 with polycarbonate housing. (B) = generation index B. Consists of: 10x O-Ring 195 x 3,53 EPDM.

  • 72
    • Nr 72 Order code 71188179

      Kit cover gasket, plastic, Promag L/W

      Usage: Promag 400/800, Promag 500, sensor connection housing. Consists of: 10x O-Ring 91,67 x 3,53 FKM.

  • 71
    • Nr 71 Order code 71182807

      Kit housing gasket, D/L/W, compact

      Usage: Promag 400/800. Consists of: Gasket EPDM for housing/sensor D. Gasket EPDM for housing/sensor L/W.

  • 73
    • Nr 73 Order code 50098023

      Kit housing gasket FS Stnd/HT

      Usage: 10/50/51/53/55/400/800 Sensor: D/E/L/P/S/W

    • Nr 73 Order code 50098023

      Kit housing gasket FS Stnd/HT

      Usage: 10/50/51/53/55/400/800 Sensor: D/E/L/P/S/W

  • 12
    • Nr 12 Order code 71188175

      Kit housing parts, D/L/W, compact

      Usage: Promag 400/800 with sensor D/L/W. Consists of: Screw M6x28 A2, washer spring M6 A4, for housing/sensor D. Screw M5x35 A2 for housing/sensor L/W.

  • 13
    • Nr 13 Order code 50098019

      Kit parts housing FS Stnd/HT

      Usage: 10/50/51/53/55/400/800 Sensor: D/E/H/L/P/S/W

  • 15
  • 17
  • 82
    • Nr 82 Order code 71182808

      Kit weather prot. cover, Promag 400/800

      Consists of: Weather protective cover, installation material.

  • 53
  • 49
    • Nr 49 Order code DK5004-

      Battery Set Promag W,L 800

      Configuration must be compatible with power supply of the ordered Promag 800. Select configuration by document "Technical Information".

    • Order code 5X8BXX-

      Transmitter Promag 800, 5X8BXX

      Battery powered Transmitter incl. Display, data logger and Micro SD Card intergrated

    • Order code DK5CA-

      Promag, cable remote version

      10/50/51/53/55/400/800 1 kit includes 1 coil cable and 1 signal cable

    • Order code DK5WM-

      Transmitter Promag, mounting set

      10/50/51/53/55/800

    • Order code DK5GD-

      Promag, grounding disc/protection disc

      Includes 1 grounding disc/protection disc

    • Order code DK5GC-

      Promag L/W/P/S,E, grounding cable kit

      A kit includes 2 cables
