TMT142R
RTD thermometer, fieldtransmitter display

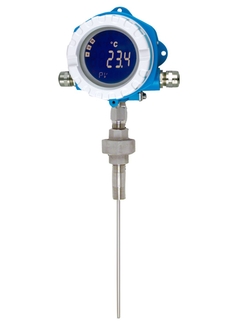

RTD thermometer TMT142R with field transmitter display ©Endress+Hauser

Safe monitoring of process temperatures in challenging applications e. g. in the Oil & Gas industry

The robust thermometer is designed for use in demanding and safety relevant applications e.g. in the Chemical, Oil & Gas and Energy industry. The thermometer fulfills the corresponding safety requirements due to various certificates and tests. The use of a transmitter leads to higher accuracy and reliability in comparison to directly wired sensors.

Snabbval

Välj från de föreslagna alternativen
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

eller

Individuell konfigurering

Fortsätt välja från alla tillgängliga alternativ
  • Fördelar

    • HART® protocol for operating the device on site using handheld terminal (DXR375) or remotely via the PC

    • Illuminated display, rotatable

    • Single Pt100 with 3 or 4 wires connection

    • Undervoltage detection responds immediately, output of falsified measured...

  • Applikationsområde

    The temperature assembly TMT142R is a compact resistance thermometer specifically designed to fulfill the requirements of different process industries such as the chemical, petrochemical and energy but even suitable to other general purpose applications...

Funktioner och specifikationer

Tillbaka

Details

  • Mätprincip

    Resistance Temperature Detector

  • Characteristic / Application

    US style

    modular temperature assembly

    for heavy duty applications

    suitable for hazardous areas

    threaded process connection

    to use with thermowell

    backlit display

  • Terminal head

    TMT142 - aluminium - fieldhousing w. or w/o. display

    TMT142 - SS - fieldhousing w. or w/o. display

  • Thermowell / protection tube

    to use with thermowell

  • Insert / probe

    mineral insulated (MI), flexible

  • Max. immersion length on request

    up to 30.000,00 mm (1.181,10'')

  • Material protection tube/ thermowell

    Not defined

  • Optional coating

    Not defined

  • Process connection

    male thread:

    G1/2"

    NPT1/2"

    NPT3/4"

    union nut:

    NPT1/2"

    M24x1.5

  • Operating temperature range

    PT 100:

    -200 °C ...600 °C

    (-328 °F ...1.112 °F)

  • Max. process pressure (static)

    Depending on thermowell

  • Accuracy

    class A acc. to IEC 60751

    class AA acc. to IEC 60751

  • Response time

    depending on configuration

    t50 = 3 s

    t90 = 7 s

  • Integration head transmitter

    yes (4 … 20 mA; HART)

  • Ex - approvals

    ATEX II

    Explosion proof

  • Certification

    Gost Metrology

Dokumentation / manualer / programvara

Tillbehör / reservdelar

Nr
Order code
Specification
  • 8
  • 6
  • 2
    • Nr 2 Order code 71310423

      Display fitt.kit field housing (3 piece)

      Pack = 3 piece

  • 5
    • Nr 5 Order code TMT142X-HH

      Housing cover blind, Alu Ex d FM XP without O-ring CSA XP only as cover of terminal part

    • Nr 5 Order code TMT142X-HI

      Housing cover blind, Alu + O-ring

    • Nr 5 Order code TMT142X-HK

      Housing cover cpl. for display, Alu Ex d + O-ring

    • Nr 5 Order code TMT142X-HL

      Housing cover cpl. for display, Alu + O-ring

  • 7
    • Nr 7 Order code 51004948

      Cover latch spares kit field housing

      Screw, washer, spring washer

  • 2+3
  • 9
    • Order code FXA195-

      Commubox FXA195

      Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508.

    • Order code TET300-

      RTD Insert TET300

      Replaceable Insert (MgO). Connection to EEx d head with NPT1/2. Diameter: D=6mm.
