Conductivity assembly
Dipfit CLA111

Conductivity assembly

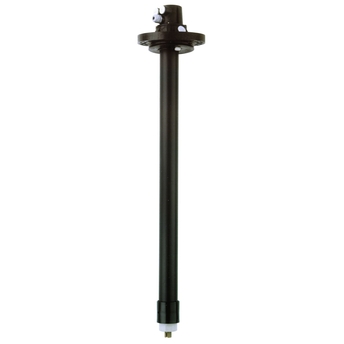

Dipfit CLA111 ©Endress+Hauser

Immersion assembly for water, wastewater and utilities

The Dipfit CLA111 immersion assembly is designed for application in open basins, channels and tanks. It is suitable for conductive and toroidal sensors that can be easily mounted and removed via the bayonet lock. The adjustable flange gives you the required flexibility for universal use. Dipfit is the time and cost-effective solution for standard water and wastewater treatment.

  • Fördelar

    • Easy installation and removal of sensor thanks to bayonet lock mounting method

    • Flexible immersion depth thanks to adjustable flange

    • Made of environmentally-compatible polypropylene material

    • Reduced condensation of water due to breathable Goretex® filter

  • Applikationsområde

    Dipfit CLA111 is an immersion assembly for conductivity sensors in water, wastewater and utility applications, such as:

    • Inlet of wastewater treatment plants

    • Surface water monitoring

    • Well monitoring

    Dipfit CLA111 is suitable for:

    • CLS21/CLS21D...

Funktioner och specifikationer

Tillbaka

Details

  • Mätprincip

    Conductive

  • Application

    Water, waste water, process

  • Characteristic

    Open and closed tank, open channel

  • Design

    For use with G1" or G3/4" thread-bayonet-type holder system
    Variable holder length
    Process connection with fixed or sliding flange

  • Material

    Sensor holder: PP-GF 20
    Immersion tube: PP

  • Dimension

    Length: 500 to 3000 mm (19.7 to 118 inch), special lengths on request

  • Process temperature

    Max. 80 °C (176 °F)

  • Process pressure

    Max. 4 bar at 20 °C
    (Max. 58 psi at 68 °F)
