Produkten är inte tillgänglig på den svenska marknaden.
En överblick över specifikationer
-
Process temperature
0 to 50°C
32 to 122 °F -
Process pressure
0 to 6 bar abs.
0 to 87 psi
Applikationsområde

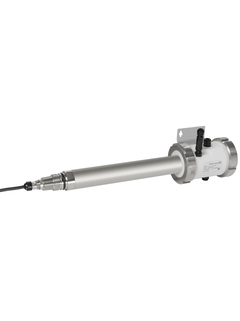

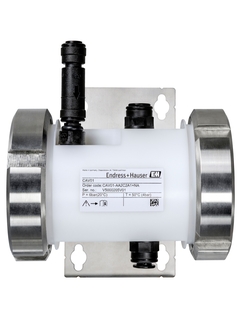

CAV01 allows for monitoring of up to 5 parameters when a Memosens Wave CAS80E spectrometer or a Viomax CAS51D nitrate/SAC sensor is installed. Thanks to the sensors' fast response times and continuous measurements, unexpected events in the process are identified at an early stage. The assembly's integrated pressure cleaning ensures extended maintenance intervals. CAV01 enables accurate measurements at low flows of 0.1 to 10 l/h, resulting in a minimum water loss.
CAV01 flow assembly is suitable for by-pass measurement of various parameters such as SAC54, TOCeq, CODeq, BODeq, DOCeq, turbidity, TSS, APHA/Hazen, nitrate in the following applications:
Drinking water treatment and network monitoring
Quality control of all measuring points in drinking water production
Raw water monitoring
Process water treatment and monitoring
Water re-use monitoring
Cooling water and condensate
Monitoring of municipal and industrial wastewater
Control of aeration basins
Fördelar
Extended maintenance intervals thanks to optimized, automatic pressure cleaning.
Minimum water loss: Precise measurement at low sample flow
Robust design: Suitable for process pressures up to 6 bar (87 psi) and temperatures up to 50 °C (122 °F)
Full compatibility with all path lengths of Memosens Wave CAS80E and Viomax CAS51D
Simple installation thanks to pre-mounted wall bracket and fixed sensor orientation
Fast maintenance thanks to tool-free deinstallation
Extended urvalet
-
High-end produkter
- Mycket funktionella och praktiska
Tekniska egenskaper
Enkelhet
-
Standardprodukter
- Pålitliga, robusta och lätta att underhålla
Tekniska egenskaper
Enkelhet
-
Specialprodukter
- Designade för krävande applikationer
Tekniska egenskaper
Enkelhet
Varierande
| FLEX urvalet | Tekniska egenskaper | Enkelhet |
|---|---|---|
Fundamental urvalet Möt dina grundläggande mätbehov |
Tekniska egenskaper
|
Enkelhet
|
Lean urvalet Hantera dina kärnprocesser med enkelhet |
Tekniska egenskaper
|
Enkelhet
|
Extended urvalet Optimera dina processer med innovativa teknologier |
Tekniska egenskaper
|
Enkelhet
|
Xpert urvalet Hantera dina mest utmanande applikationer |
Tekniska egenskaper
|
Enkelhet
Varierande |
Loading alternative products
Kundcase
-
-
Installationsanvisningar (EA)
EA CAV01
Flow assembly for optical sensors Viomax CAS51D and Memosens Wave CAS80E
EN SV 27/04/2023Språk:
Engelska
Version:
27/04/2023
Filstorlek:
1015.2 KB
Filnamn:
EA01472CEN_0123-00.pdf
-
-
-
Installationsanvisningar (EA)
EA CAV01 kit, seal set
for the CAV01 flow assembly
EN SV 14/08/2023Språk:
Engelska
Version:
14/08/2023
Filstorlek:
977.1 KB
Filnamn:
EA01477CEN_0123-00.pdf
-
