Applikationsområde

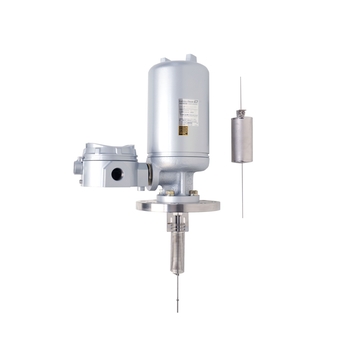

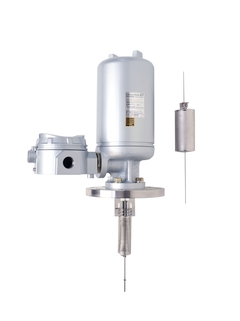

The MPC2 level switch is a displacement type instrument for installation on a tank. It provides alarm contact output of max. 4 points while activating micro switches with magnet. The switching mechanism is designed to operate these contacts independent of one another. The instruments could therefore emit high and low level alarm alarms.
Ambient temperature: -10 to +60°C (14 to +140°F)
Accuracy: ±3mm (± 0.12")
Fördelar
Spring type micro switch holders assuring proper operations unaffected by vibration of vessels
Multi-point control (4 points maximum) possible with a single product.
Resistance to high temperature and high pressure
Simple construction featuring stable operation
Explosion-proof type is also available
Kundcase
-
Standardprodukter
- Pålitliga, robusta och lätta att underhålla
Tekniska egenskaper
Enkelhet
-
Specialprodukter
- Designade för krävande applikationer
Tekniska egenskaper
Enkelhet
Varierande
| FLEX urvalet | Tekniska egenskaper | Enkelhet |
|---|---|---|
Fundamental urvalet Möt dina grundläggande mätbehov |
Tekniska egenskaper
|
Enkelhet
|
Lean urvalet Hantera dina kärnprocesser med enkelhet |
Tekniska egenskaper
|
Enkelhet
|
Extended urvalet Optimera dina processer med innovativa teknologier |
Tekniska egenskaper
|
Enkelhet
|
Xpert urvalet Hantera dina mest utmanande applikationer |
Tekniska egenskaper
|
Enkelhet
Varierande |
7 dokument
-
-
Teknisk information (TI)
MPC2 - Techinical Information
Tank Gauging - Level Switch MPC2000 MPC2
EN SV 31/05/2010Språk:
Engelska
Version:
31/05/2010
Filstorlek:
2.2 MB
Filnamn:
TI029N08en05.10.pdf
-
-
-
Teknisk information (TI)
Level Switch MPC2000 MPC2 - Technical Information
MPC series level controllers are displacement type instruments for tank
installation. MPC provides 1to 4 control output contacts while
activating
microswitches with a magnet. The switching mechanism is designed to
operate these contacts independent of one another and performs pump
control by utilizing the independent operation of the contacts.EN SV 03/02/2014Språk:
Engelska
Version:
03/02/2014
Filstorlek:
2 MB
Filnamn:
TI01151G08EN01.14.pdf
-
-
-
Användarinstruktion (BA)
Level Switch MPC2000 MPC2 - Operating Instruction
MPC series level switches are displacement type instruments for liquid
tanks. MPC displays an alarm for
water or oil tank levels and to control pumps andvalves by utilizing
independent operation of the contacts.EN SV 03/02/2014Språk:
Engelska
Version:
03/02/2014
Filstorlek:
2.7 MB
Filnamn:
BA01298G08EN01.14.pdf
-
-
-
Användarinstruktion (BA)
MPC2 - Operating Instructions
Tank Gauging - Level switch MPC2000 MPC2
EN SV 31/05/2010Språk:
Engelska
Version:
31/05/2010
Filstorlek:
2.2 MB
Filnamn:
BA1014N08en05.10.pdf
-
-
-
Explosionsskydd
Product family: Sakura, System & Gauging
Product root: MPC2-
Region: Japan
Approval agency: TIIS
Protection: Ex dSpråk:
Japanska
Version:
01/04/2023
Filstorlek:
189.1 KB
Filnamn:
TIIS_T63223_MPC2302EB_2023.pdf
-
-
-
Explosionsskydd
Product family: Sakura, System & Gauging
Product root: MPC2-
Region: Japan
Approval agency: TIIS
Protection: Ex dSpråk:
Japanska
Version:
01/04/2023
Filstorlek:
183.8 KB
Filnamn:
TIIS_T63222_MPC2301EB_2023.pdf
-
-
-
Explosionsskydd
Product family: Sakura, System & Gauging
Product root: MPC2-
Region: Japan
Approval agency: TIIS
Protection: Ex dSpråk:
Japanska
Version:
01/04/2023
Filstorlek:
193.5 KB
Filnamn:
TIIS_T63224_MPC2304EB_TB_L_2023.pdf
-
Sök efter reservdelar efter nummer på ritningen
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
O-ring,Large terminal box,AT5 body,CR
-
ytterligare delar
RitningsnummerOrderkod11017880-5025 -
-
O-ring, terminal box, small, CR
-
ytterligare delar
RitningsnummerOrderkod11017880-5026 -
-
Flange packing, D120 x D70 x 2T, PTFE
-
ytterligare delar
RitningsnummerOrderkod1271437612 -
-
Flange packing, D134 x D90 x 2T, PTFE
-
ytterligare delar
RitningsnummerOrderkod1271437613 -
-
Flange packing, D159 x D115 x 2T, PTFE
-
ytterligare delar
RitningsnummerOrderkod1271437614 -
-
Cover, terminal box
-
ytterligare delar
RitningsnummerOrderkod21017860-6323 -
-
Cover, terminal box, large
-
ytterligare delar
RitningsnummerOrderkod21017860-6324 -
-
Cover for main housing, 2 contacts
-
ytterligare delar
RitningsnummerOrderkod21017885-6316 -
-
Cover for main housing, 3, 4 contacts
-
ytterligare delar
RitningsnummerOrderkod21017885-6317 -
-
Blacket high temperature, MPC2
-
ytterligare delar
RitningsnummerOrderkod3156004285 -
-
Switch bracket assembly
-
ytterligare delar
RitningsnummerOrderkod31017885-1836 -
-
Displacer, 50mm, SUS316, 105H
-
ytterligare delar
RitningsnummerOrderkod53017885-1841 -
-
Displacer, 50mm, SUS316, 155H
-
ytterligare delar
RitningsnummerOrderkod53017885-1842 -
-
Float holder MPC
-
ytterligare delar
RitningsnummerOrderkod5456004364 -
-
Wire holder, MPC
-
ytterligare delar
RitningsnummerOrderkod5556004532 -
-
Wire sleeve, dia.1.6 (10pcs/set)
-
ytterligare delar
RitningsnummerOrderkod56017885-1839 -
-
Spring for 1 contact, 4g
-
ytterligare delar
RitningsnummerOrderkod57017885-1847 -
-
Spring for 2 contacts, 5g
-
ytterligare delar
RitningsnummerOrderkod57017885-1848 -
-
Spring for 3 contacts, 7g
-
ytterligare delar
RitningsnummerOrderkod57017885-1849 -
-
Spring for 4 contacts, 8g
-
ytterligare delar
RitningsnummerOrderkod57017885-1850 -
