En överblick över specifikationer
-
Measured Variables
Concentration
Cell Pressure
Cell Temperature -
Hazardous area approvals
CSA Class I, Division 2
CSA Class I, Zone 2
Applikationsområde

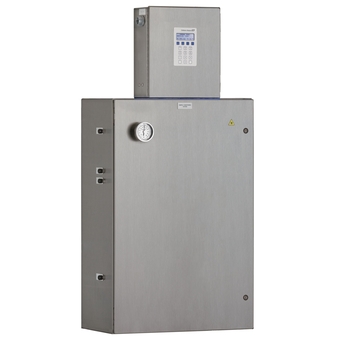

Using patented tunable diode laser absorption spectroscopy (TDLAS) technology, the SS2100 gas analyzer measures specific gases (H2O, CO2, H2S, NH3, and C2H2) with precision while avoiding interferences that are common with traditional infrared analyzers. The SS2100 analyzer requires little maintenance and does not need recalibration or periodic replacement parts.
Gas analysis: ppb level measurement of H2O & NH3, ppm level measurement of H2O, H2S, CO2, NH3, and C2H2, and percent (%) level measurement of H2S and CO2
Natural gas: production, storage, transportation, distribution
Refinery: hydrogen recycle, catalytic reforming, flaring, cracking
Gas processing: fractionation, sour/acid gas removal
LNG: liquefication, custody transfer
Petrochemical: cracking, acetylene converter, caustic wash tower
CCUS: measure trace H2S and H2O in 100% CO2
Fördelar
Accurate, real-time measurements
Low cost of ownership, no consumables and virtually maintenance-free and reliable in harsh environments
Available to measure up to 3 analytes in one unit (2-packs or 3-packs)
Provides measurements not hampered by wet-up (absorption) or dry-down (desorption)
Dependable with greater repeatability than surface-based sensors
Analog and serial outputs for remote monitoring
Available for following measurements: H2O, CO2, H2S, NH3, C2H2
