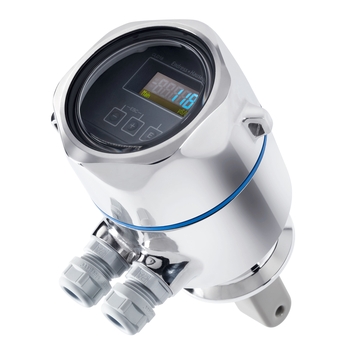

Smartec CLD18  is a compact toroidal conductivity system for the beverage industry.

Compact conductivity device
Smartec CLD18

Toroidal conductivity measuring system for hygienic applications

CLD18
please wait
Laddar pris
Pris ej tillgängligt för tillfället
Price on request
from CHF ??.-

En överblick över specifikationer

  • Measurement range

    200 µS/cm to 1000 mS/cm
    Cell constant k: 11.0 1/cm

  • Process temperature

    -10 °C to 110 °C (14 °F to 230 °F)
    Sterilization: max. 130 °C at 6 bar abs up to 60 min
    (Max. 266 °F at 87 psi up to 60 min)

  • Process pressure

    13 bar abs up to 50 °C (188.5 psi up to 122 °F)
    7.75 bar abs at 110 °C (112 psi at 230 °F)
    6.0 bar abs at 130 °C for max. 60 minutes
    (87 psi at 266 °F for max. 60 minutes)

Applikationsområde

Smartec CLD18 is the cost-effective solution for all applications in beverage plants where small tubes are used and where the toroidal measurement is used as a switch function. The combination of a transmitter and a sensor is interference-free, easy-to-use and features a hygienic design that protects your products and processes from contamination. Smartec CLD18 ensures the Overall Equipment Effectiveness (OEE) of your plant thanks to fast and reliable CIP and optional IO-Link protocol.

The hygienic Smartec CLD18 measures toroidal conductivity in beverage applications:

  • Control of CIP processes in the return channel

  • Concentration control in remaking of CIP cleaning agents

  • Product monitoring in pipe systems, bottling plants

  • Beer - Push water interphase

  • Beer - Water cut for brewing lines

  • Leakage monitoring

It features the following protocols and interfaces:

  • 0/4...20mA

  • IO-Link (optional)

Fördelar

  • Unique hygienic design avoids contamination

  • 3-A approval

  • Compliant with EG 2023/2006 and 1935/2004

  • Suitable for cleaning-in-place (CIP)

  • Smart and easy integration into your plant infrastructure thanks to optional IO-Link protocol

  • Compact design permits installation in small tubes without restricting the flow
